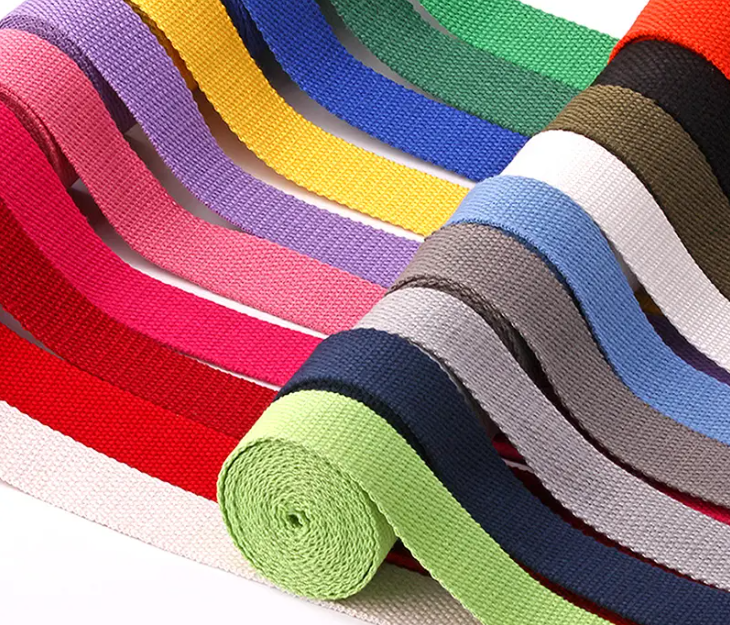

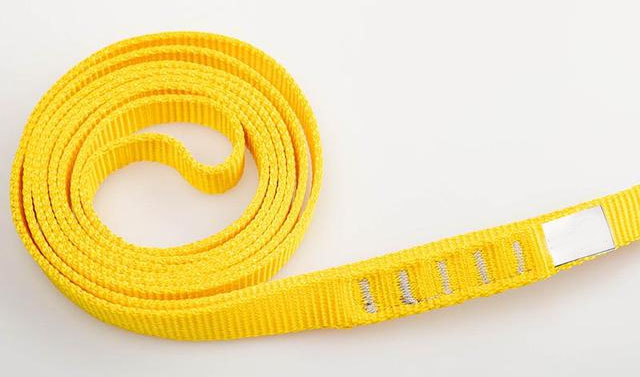

Webbing, also known as rope, or flat belt, refers to a narrow fabric or tubular fabric made of various yarns.
There are many kinds of webbing applications, which are widely used in various industrial sectors such as clothing, shoe materials, luggage, industry, agriculture, military supplies, and transportation.
In the 1930s, webbing was produced by hand-made webbing with exquisite pictures, and the raw materials were cotton thread and hemp thread. After the founding of the People's Republic of China, the raw materials for webbing have gradually developed to nylon, vinylon, polyester, polypropylene, spandex, viscose, etc., forming three major types of technology: weaving, knitting, and knitting. The fabric structure includes plain weave, twill, satin, jacquard, Bilayer, multilayer, tubular and joint tissue.
Woven (woven) Webbing
Warp and weft interweaving. After twisting, the yarn is warped into a bobbin (pan head), the weft yarn is shaken into a bun, and the tape is woven on the loom. In the 1930s, weaving belts for hand-pulled wooden looms and iron-wood looms. In the early 1960s, the 1511 loom was converted into a ribbon loom. Now, due to the small width of the ribbon, the weaving method is different. There are single, double, and dozens of looms, and there are single layers and double layers.
Weaving (spin weaving) Webbing
After the yarn is wound and wound to form a weft tube, it is inserted into the fixed tooth base of the knitting machine. Usually the number of spindles is even, the woven ribbon is tubular, the number of spindles is odd, and the woven ribbon is flat. The spindle weaving process has been applied since the old China. The number of spindles varies from 9 to 100 spindles due to different equipment. The basic process of weaving is: bleaching and dyeing - weft winding - weaving - unloading and cutting - packaging. Since 1960, several technological innovations have been carried out on the knitting machine, mainly including the enlargement of the diameter of the peach board, the installation of an automatic stop device for broken rubber bands, and the replacement of iron ingots with nylon ingots. The improvement of these equipments has increased the vehicle speed to 160-190 rpm, doubled the stand rate, and greatly increased the product quality.
Knitting Webbing
In the 1970s, knitting warp knitting and weft knitting technology has been widely used in webbing, flat belt and rope belt. In 1973, the trial production of knitted nylon wide tight belt was successful. In 1982, it began to introduce Italian crochet machines, with advanced technology and wide production varieties, especially suitable for thin decorative belt fabrics, such as lace, elastic belt, window screen, decorative belt and so on. The basic technological process is: bleaching and dyeing - winding - weaving - ironing - packaging.
At present, there are many webbing manufacturers in China. Changye Webbing Co., Ltd. is a leading webbing production enterprise, with more than 16 years of webbing production experience of professional and technical personnel.
